Features
Flows from 150 to 5000 GPM
Pressures from 40 to 355+ PSI
Electric or Diesel driven
UL-448 listed
FM-1311 approved
NFPA-20 design
Factory tested
Benefits
Ease of installation and maintenance
Wide range of applications
Construction materials are available for seawater service

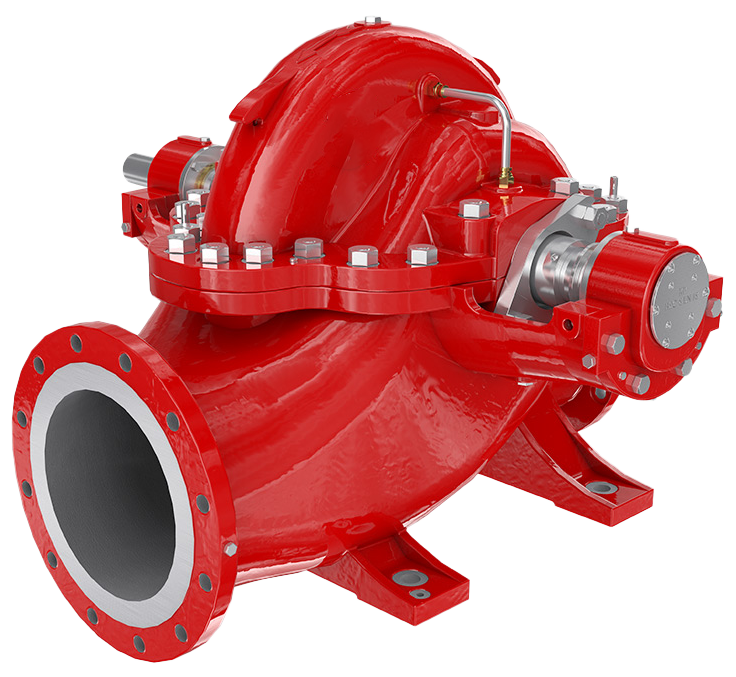

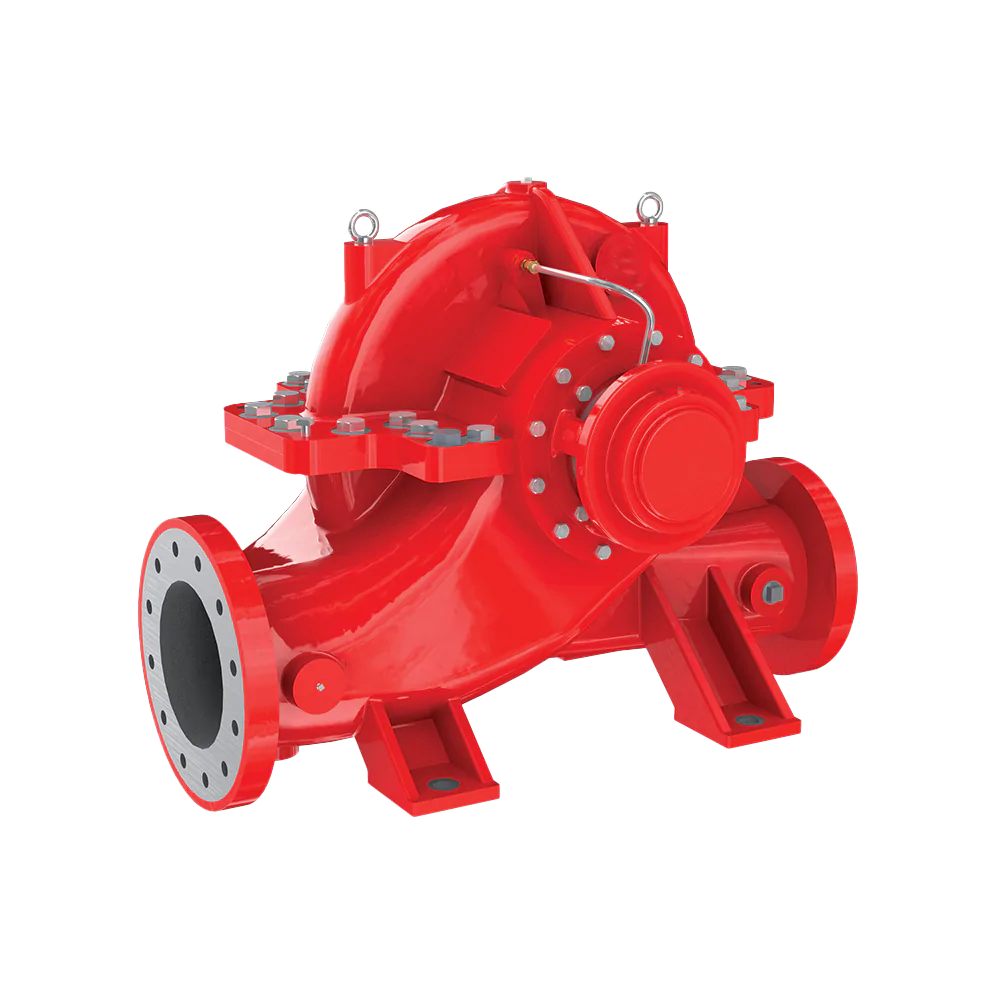

Ruhrpumpen's split-case centrifugal fire pumps feature a heavy shaft and short bearing clearance that minimize shaft deflection, providing longer seal and bearing life and lower maintenance costs while requiring less floor space.
RP's split case fire pumps are manufactured to NFPA 20 standards and are listed by Underwriters Laboratories (UL) and approved by Factory Mutual (FM).
- Compact design and efficient operation
- Shaft sleeve to protect the shaft against corrosion and wear
- Grease-lubricated replaceable radial and thrust bearings are guaranteed
- Closed, double-suction impeller, cast in one piece and balanced to minimize thrust and provide longer bearing life

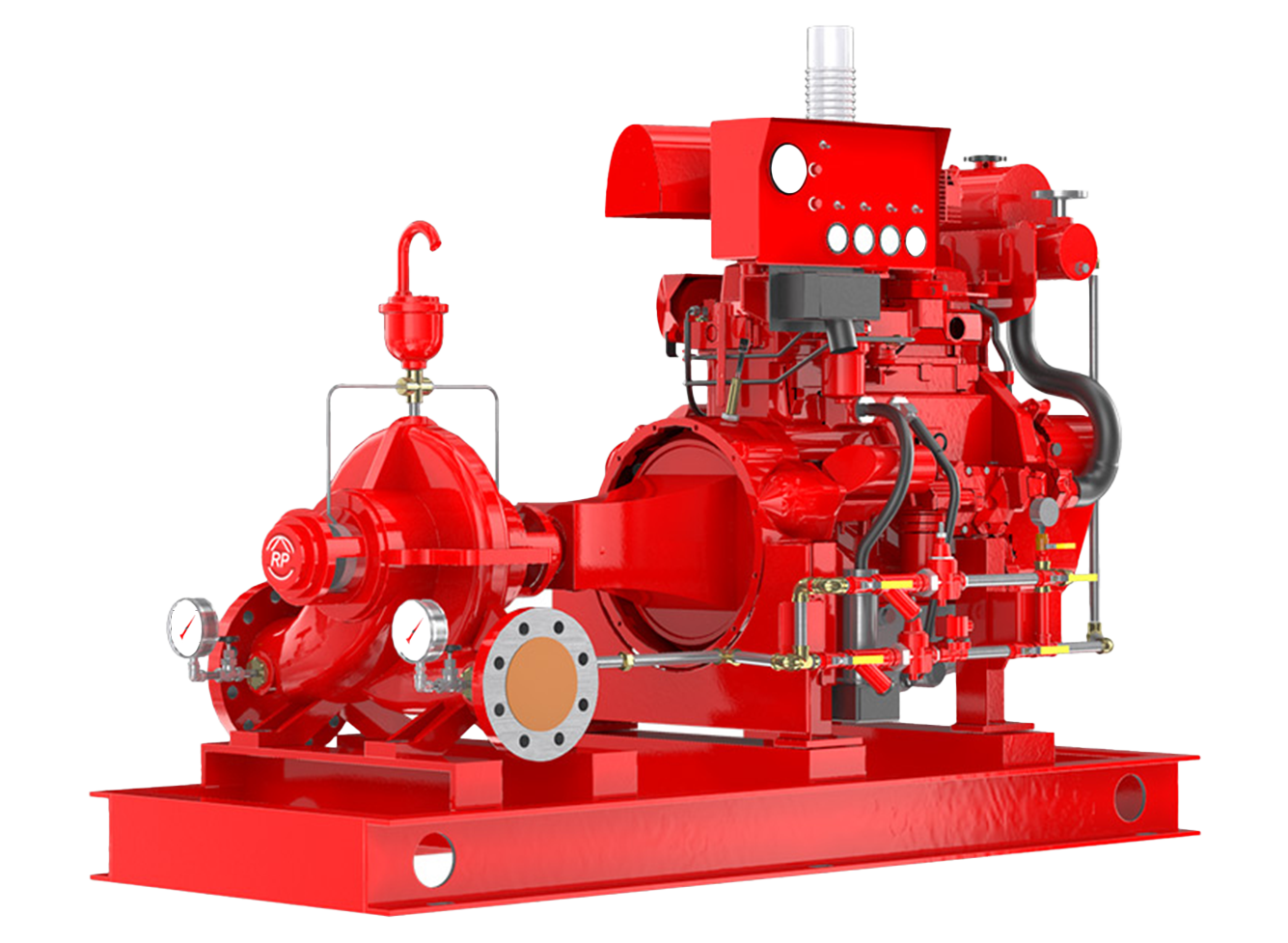

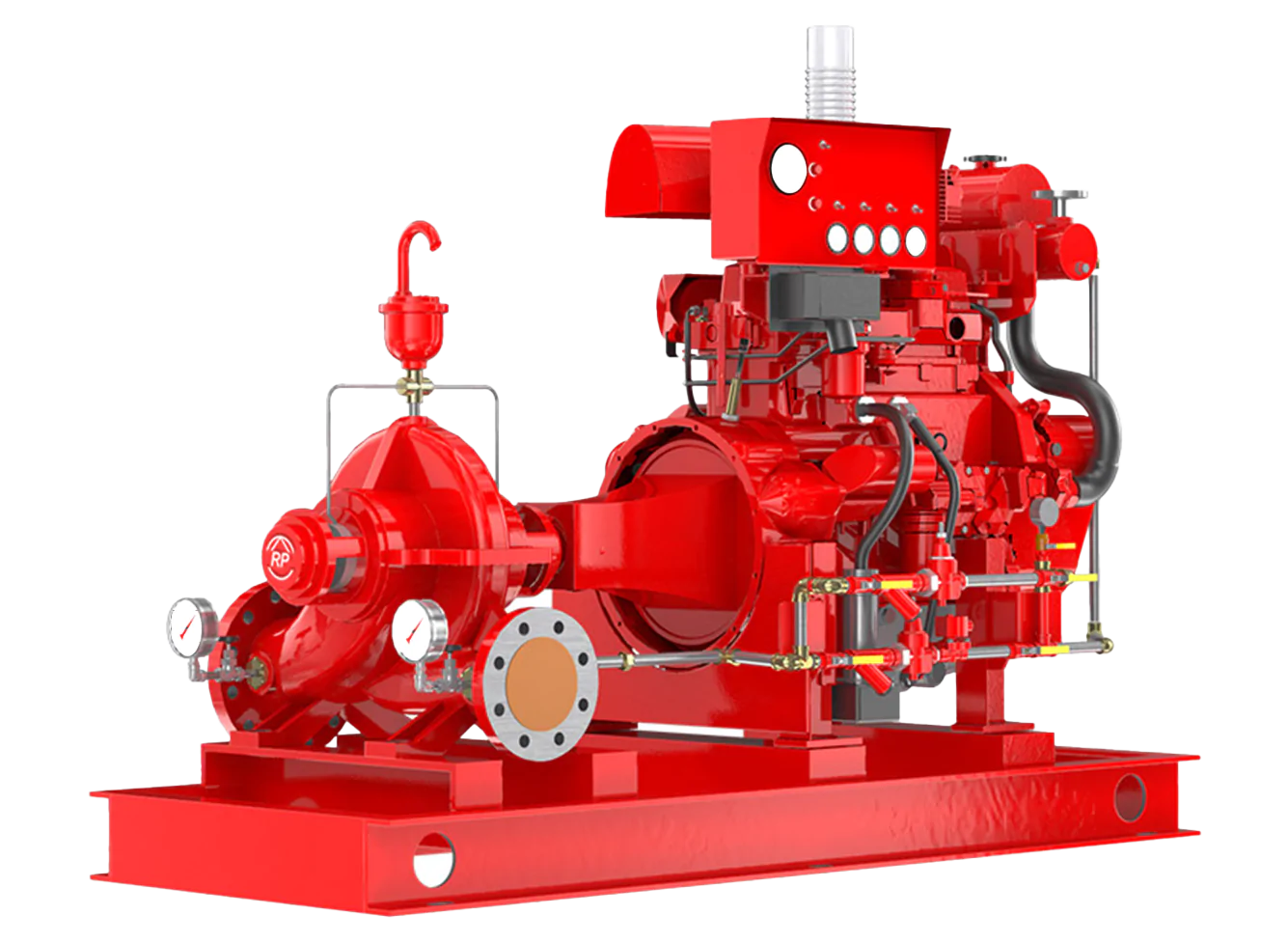

- Available with electric or diesel drive
- Ease of installation and maintenance
- Wide range of applications
- Construction materials are available for seawater service.
DESIGN FEATURES
- NFPA-20 design
- UL-448 listed
- FM-1311 approved
Ruhrpumpen also designs ABS certified marine fire pump systems for floating offshore facilities.
CONSTRUCTION MATERIALS
Standard materials:
- Cast iron
- Ductile iron
- Carbon steel
Metallurgies available for marine/brackish water applications and harsh environments:
- Stainless steel
- Duplex and Super Duplex
- Nickel-Aluminum-Bronze
FIRE MARKET APPLICATIONS
- Sprinkler systems
- Hydrant systems
- Water curtains
