Features
Jockey pumps are normally sized for 1% flow and 10 to 20 PSI higher pressure of the fire pump.
Maintains system pressure to prevent the main fire pump from starting when minor leaks occur
Factory tested.
Benefits
Versatility in performance and design
A fire suppression system normally uses two pumps; a main, robust fire pump that supplies large quantities of water to the fire piping system, and a small, low-flow, high-pressure pump that keeps the fire system pressurized in the absence of a fire and prevents unnecessary duplication. of the main fire pump. Jockey pumps are normally sized for 1% flow and pressure 10 to 20 PSI higher than the main fire pump.

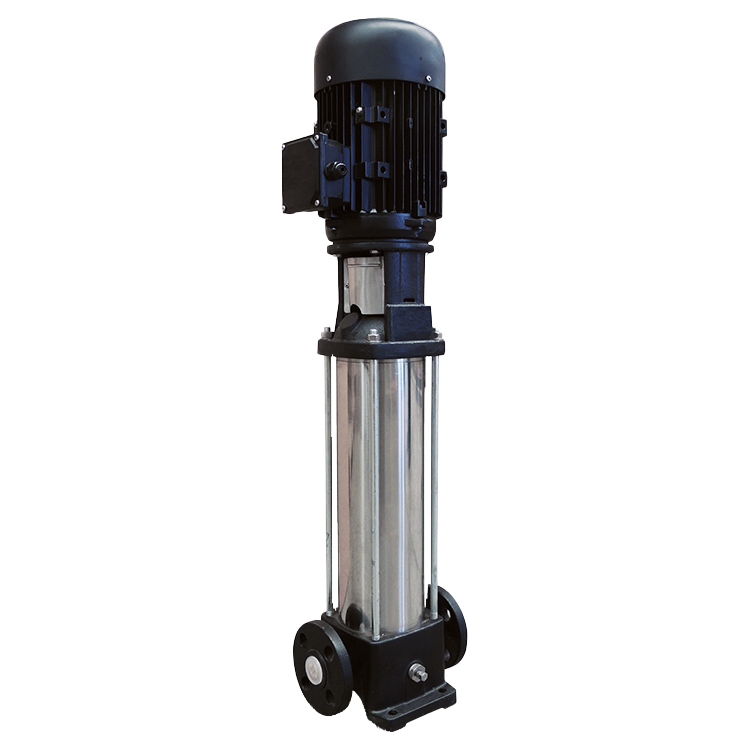

Ruhrpumpen's vertical multistage pump (type VSE) offers a technically advanced design to meet the hydraulic needs of all types of fire extinguishing systems. Available with stainless steel impeller, heavy-duty cast iron base and motor bracket.
- Centrifugal monoblock pump
- Cast iron pump body and 304 Stainless Steel impeller
- 3-phase electric motor from 1 hp to 40 hp / 220/440 V and 60 Hz
- Factory tested
